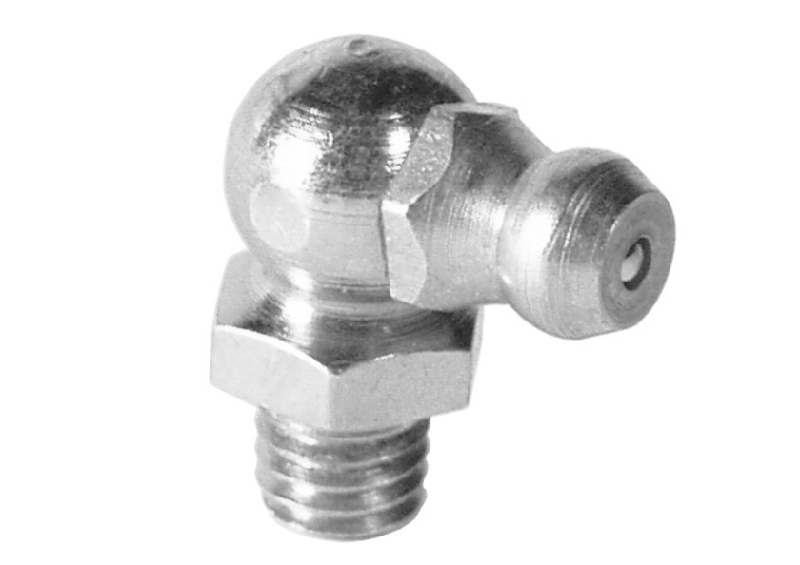

Grease nipple H3 1/2 Inch SAE/UNF 90° angled

Grease nipple H3 1/2 Inch SAE/UNF 90° angled

90° Angle Grease Nipple, Type H3, with US Inch Thread according to SAE/UNF

Thread: SAE/UNF fine thread (American standard), nominal size 1/2 inch

Pitch: 20 threads per inch (UNF)

Design: 90° angled, type H3 per DIN 71412

Material: Steel, property class 5.8

Surface finish: Zinc-plated (corrosion resistant)

Nipple head: Hardened (wear-resistant)

External thread diameter: 12.70 mm

Wrench size (AF): 14 mm
