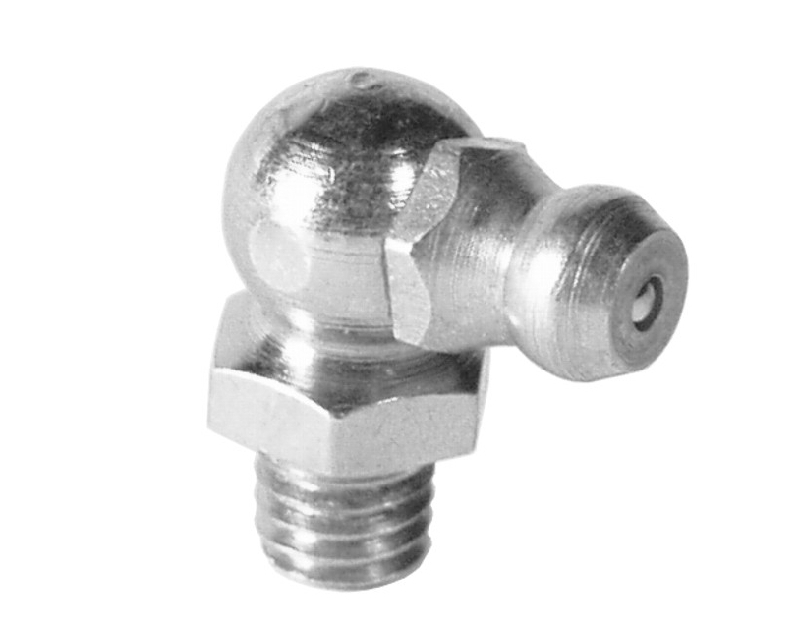

Grease nipple H3 1/4 Inch BSW, 90° angled

Grease nipple H3 1/4 Inch BSW, 90° angled

90° Angle Grease Nipple, Type H3, with BSW Coarse Thread (Whitworth Standard)

Design: Angled grease fitting according to DIN 71412, Type H3, with 90° offset

Thread Standard: British Whitworth Coarse Thread (BSW) per ISO 68-1

Thread Size: 1/4 inch (nominal diameter 6.35 mm)

Pitch: 20 threads per inch (thread angle 55°)

Material: Steel, property class 5.8

Heat Treatment: Nipple head induction-hardened (wear-resistant)

Surface Finish: Zinc-plated (corrosion-resistant)

Wrench Size (AF): 7 mm

Application: Suitable for centralized lubrication systems in confined spaces where axial access to the lubrication point is restricted.
